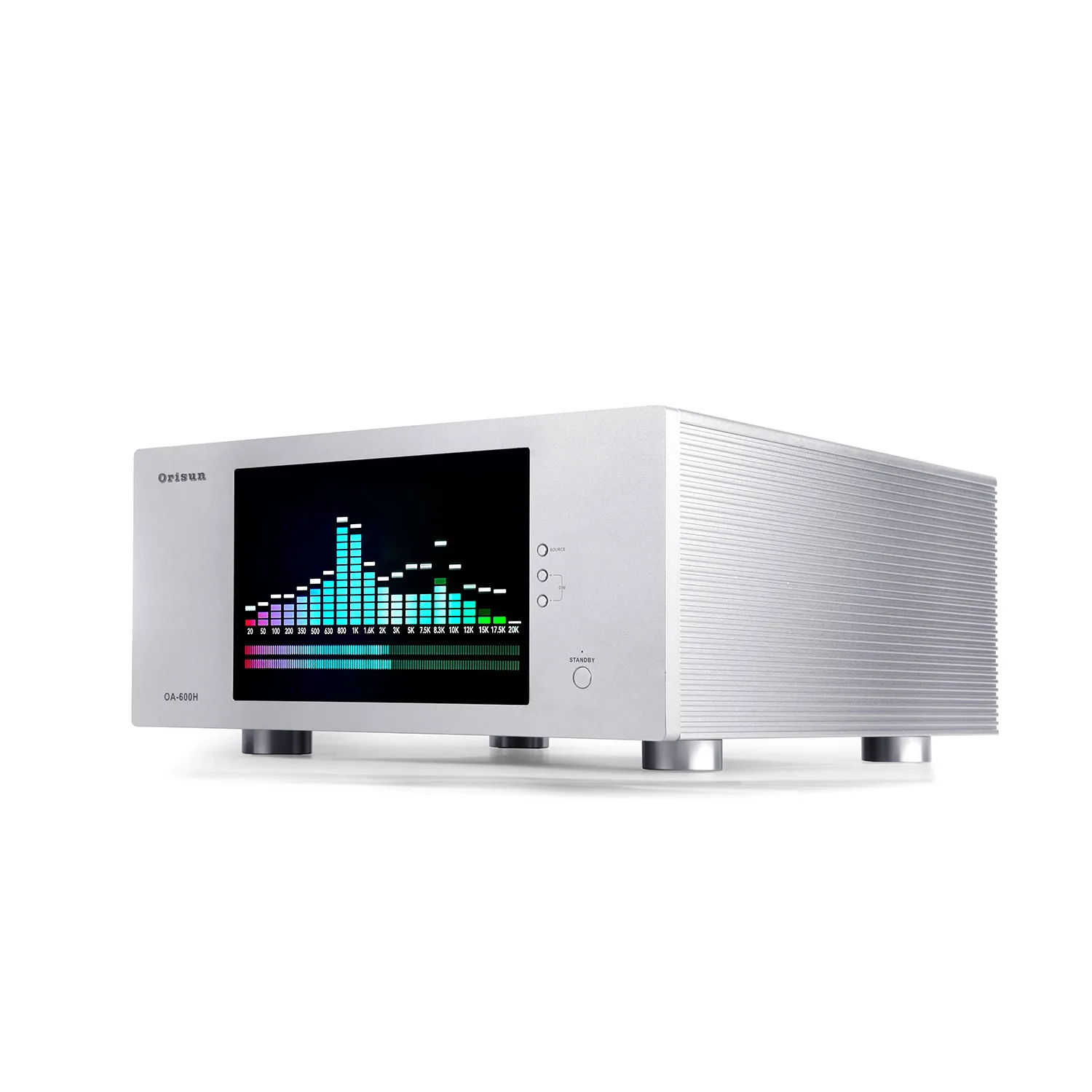

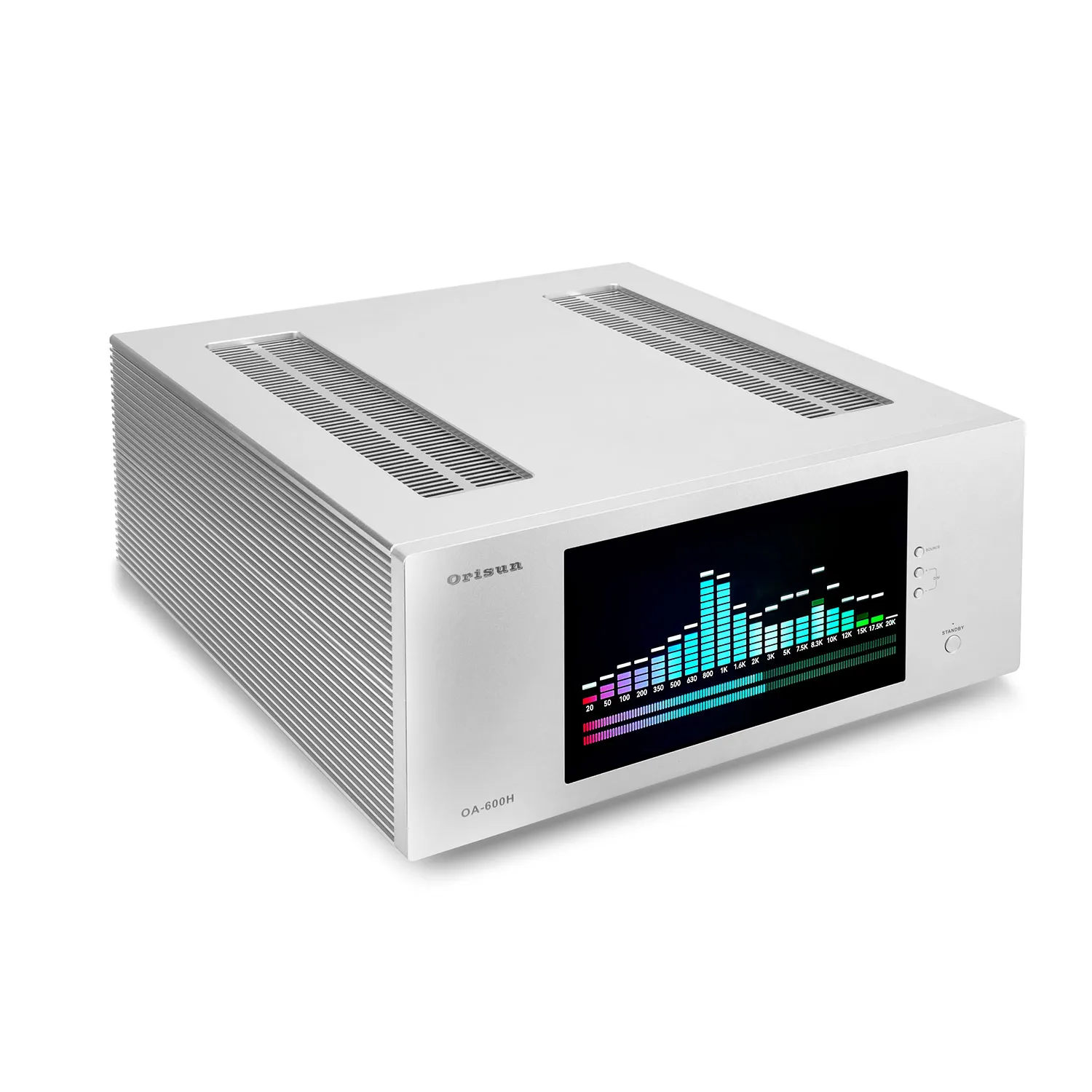

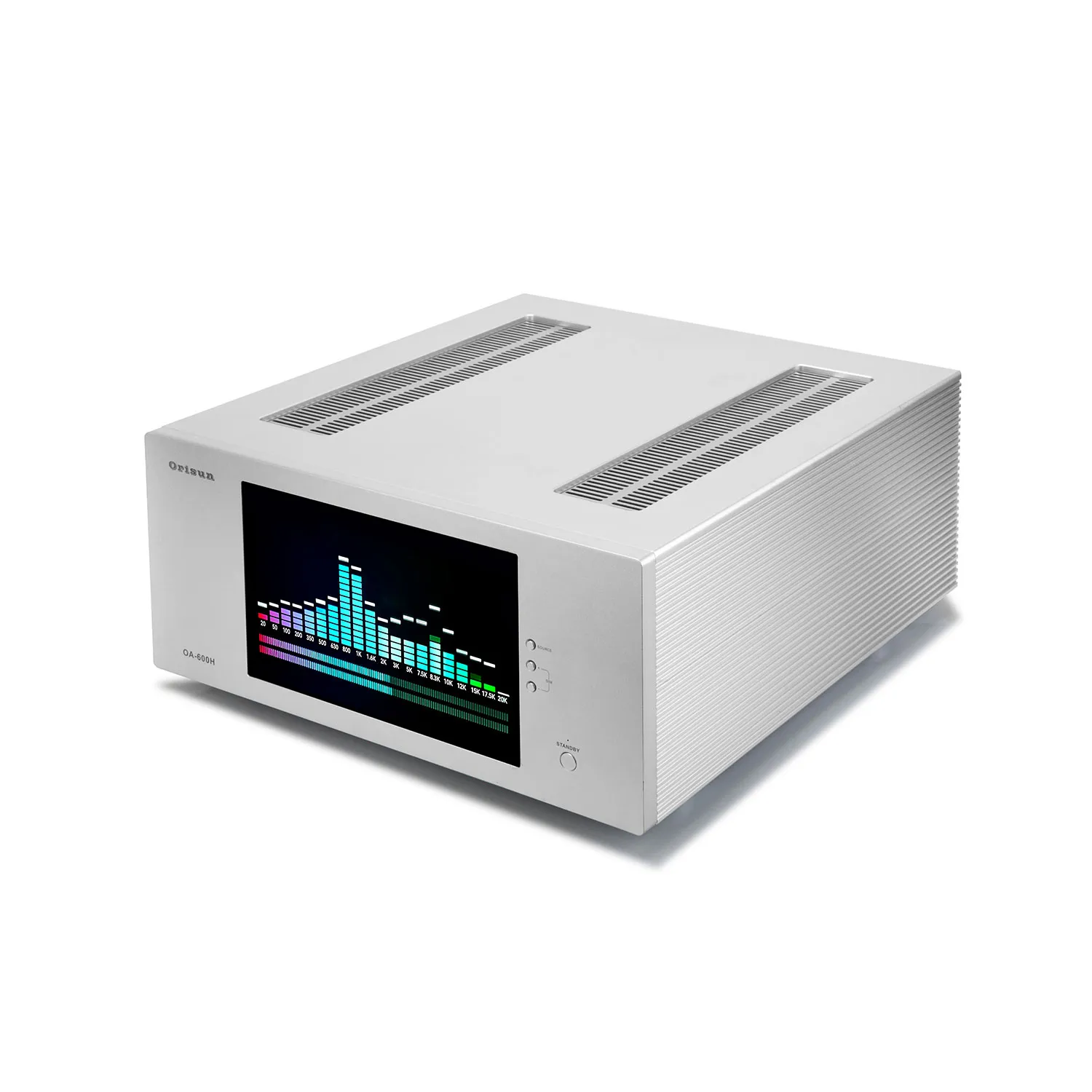

OA-600H
Specifications
Gain (RCA)
1.4V (29 dB)
Gain (XLR)
1.4V (29 dB)
Input Impedance
>47K Ohms
External Trigger
5~30V AC/DC
DC Offset
Less than 5 mv
Servo controlled

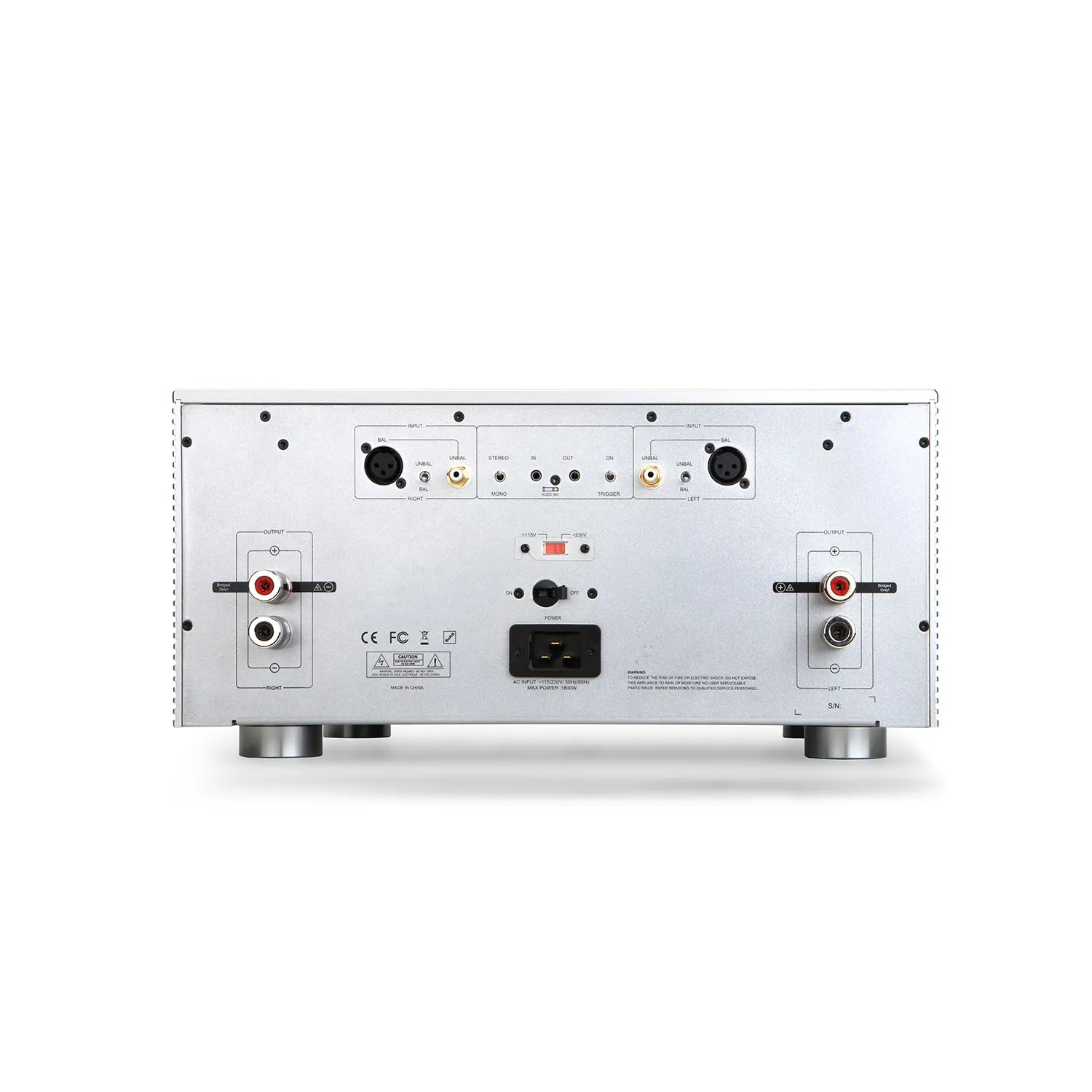

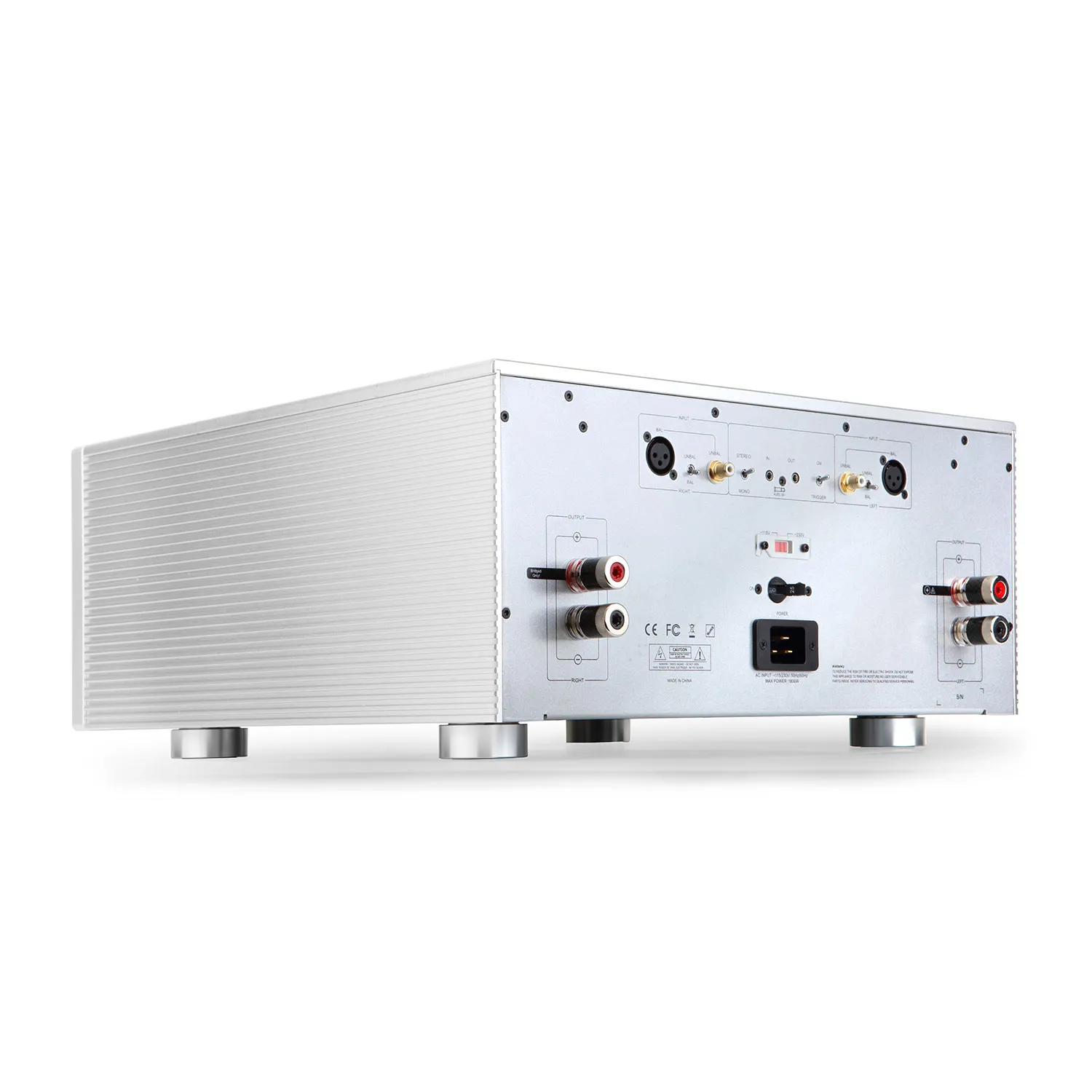

XLR Inputs
Pin #1 = Ground
Pin #2 = Positive
Pin #3 = Negative
Power Requirements
230VAC, 50Hz, 1200W
115VAC, 60Hz, 1200W
Power Consumption (Standby)
0.5 Watts
Audio Performance
Rated Power Output (8 Ohms)
350W RMS
Rated Power Output (4 Ohms)
600W RMS
Rated Power Output (BTL 8 Ohms)
1000W RMS
Frequency Response
10 Hz - 20 kHz (+/-0.5 dB)
5 Hz - 30 kHz (+/-3 dB)
Signal to Noise Ratio (A-weighted)
118 dB
Distortion (THD) (20Hz-20kHz)
<0.03%
Damping Factor (into 8 Ohms)
>400
Audio Performance
Rated Power Output (8 Ohms)
350W RMS
Rated Power Output (4 Ohms)
600W RMS
Rated Power Output (BTL 8 Ohms)
1000W RMS
Frequency Response
10 Hz - 20 kHz (+/-0.5 dB)
5 Hz - 30 kHz (+/-3 dB)
Signal to Noise Ratio (A-weighted)
118 dB
Distortion (THD) (20Hz-20kHz)
<0.03%
Damping Factor (into 8 Ohms)
>400
Size & Weight
Dimensions
Width: 435 mm
Height: 210 mm (20mm including feet)
Depth: 470 mm (29mm including speaker connections)
Net Weight
33.0 KG
Size & Weight
Dimensions
Width: 435 mm
Height: 210 mm (20mm including feet)
Depth: 470 mm (29mm including speaker connections)
Net Weight
33.0 KG
