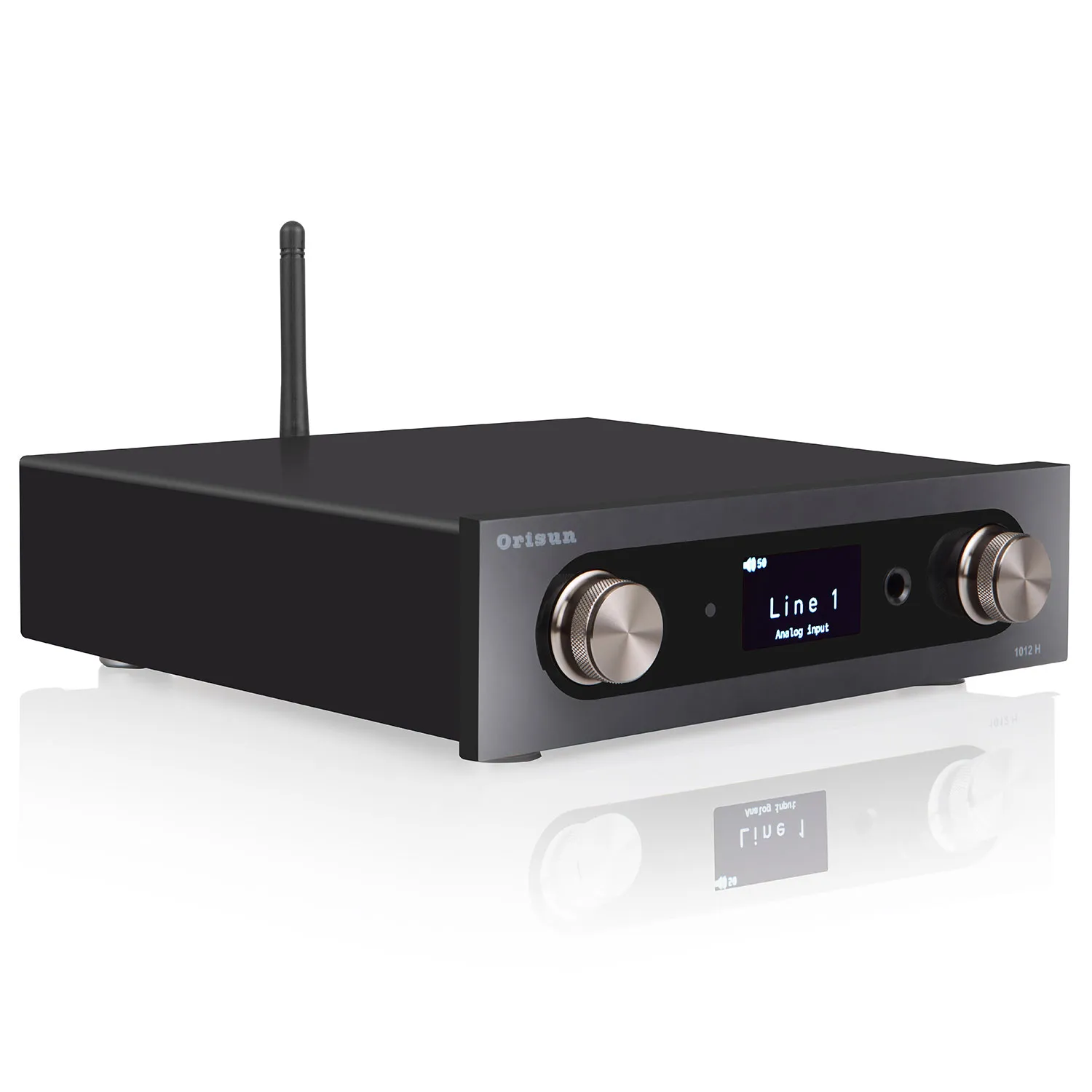

1012H
規格

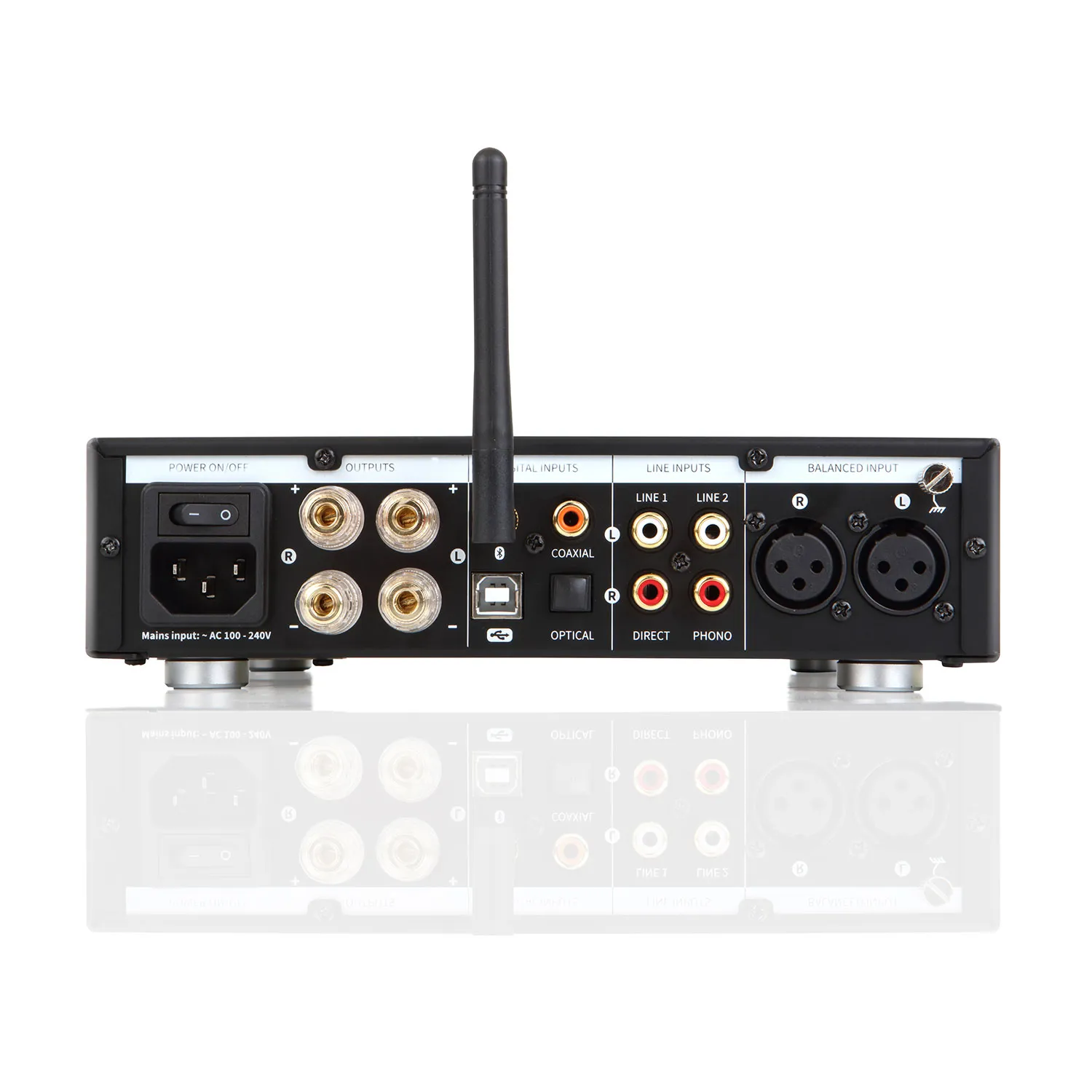

Pre-Amp Inputs
2 unbalanced RCA, 1 balanced XLR
Phono Options
Sequel mk4 MM Phono (Line 2 configurable)
Power Amp Direct
Line 1 configurable as Direct power amp input
Digital Inputs
1x coaxial RCA, 1x optical TOSLINK (24bit/192kHz)
1x USB 2.0 Type B (PCM >24bit/192kHz, DSD64)
Bluetooth
Bluetooth 5.0 aptX HD (range <15m)
DAC
ES9018k2m stereo Sabre DAC
Loudspeaker Outputs
4mm binding posts with side entry hole and spade lug
Headphone Output
6.3mm stereo jack (30-300 Ohm)
Remote Control

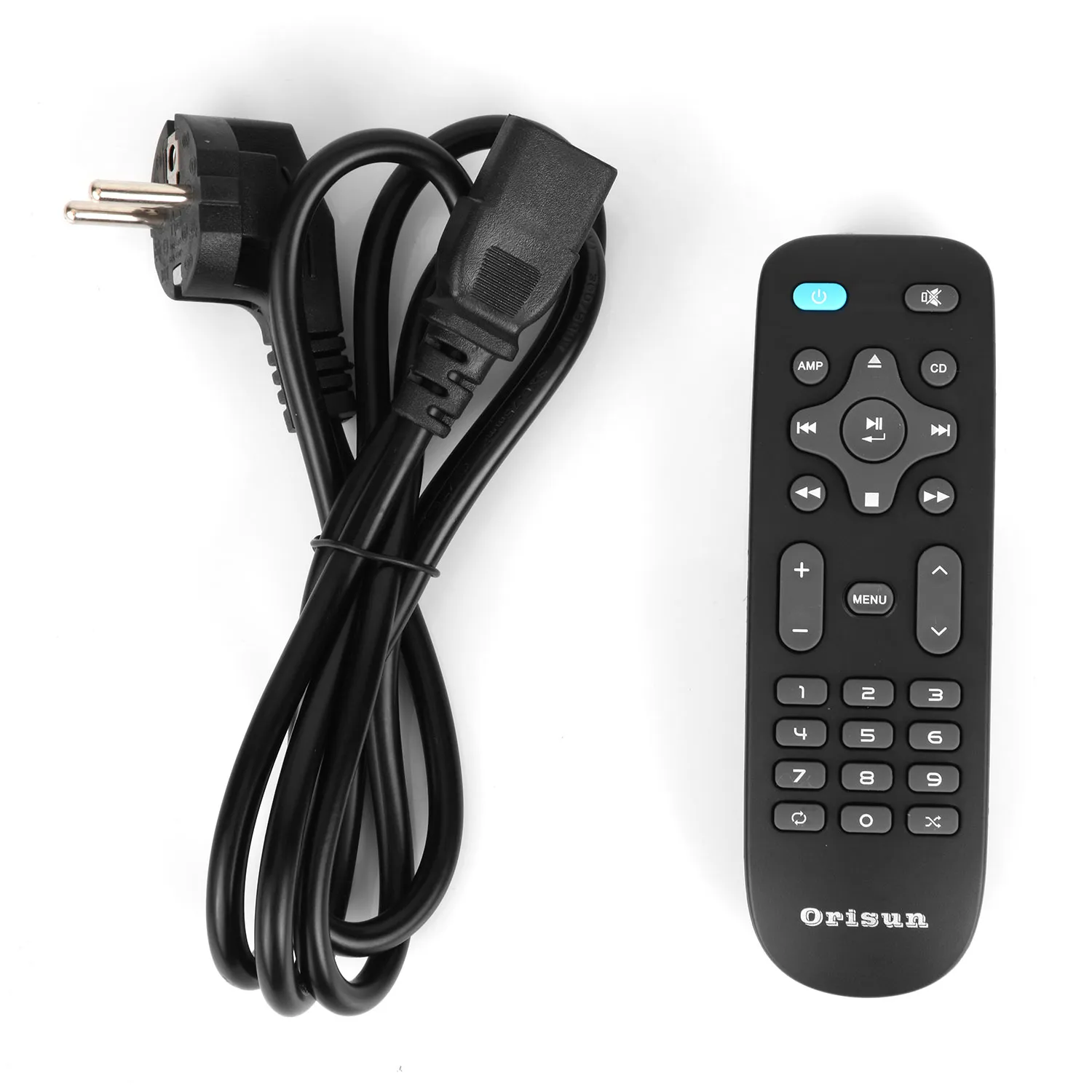

RC-40 remote (RC5 codes)
Mains Input Voltage
100V-240V, switched 115V/230V @ 50Hz/60Hz
Mains Fuse
T4A - 250V (not user serviceable)
Power Consumption
<0.5W Standby, 10W Idle, 350W Max
Auto Standby
Automatically powers down with no signal
Standby Time Options
30 mins, 60 mins, 120 mins, Always On
Finish Colours
Silver or black front panel, black cover only
音訊性能
輸出功率
55W into 8 Ohms
110W into 4 Ohms
(1% THD, 2 channels driven)
Continuous Output Current
>8A RMS
頻率響應
10Hz-20kHz (±1dB)
5Hz-30kHz (±3dB)
Signal-to-Noise Ratio
105 dB (A-weighted)
THD + Noise
<0.0045% (1kHz, 2x5W, 8 Ohms)
Input Sensitivity
525mV for 55W into 8 Ohms
Power Amp Sensitivity
525mV for 55W into 8 Ohms
Voltage Gain
32dB (x40)
Crosstalk
>68dB at 1kHz (2x5W into 8 Ohms)
阻尼係數
>100 (at 8 Ohms)
音訊性能
輸出功率
55W into 8 Ohms
110W into 4 Ohms
(1% THD, 2 channels driven)
Continuous Output Current
>8A RMS
頻率響應
10Hz-20kHz (±1dB)
5Hz-30kHz (±3dB)
Signal-to-Noise Ratio
105 dB (A-weighted)
THD + Noise
<0.0045% (1kHz, 2x5W, 8 Ohms)
Input Sensitivity
525mV for 55W into 8 Ohms
Power Amp Sensitivity
525mV for 55W into 8 Ohms
Voltage Gain
32dB (x40)
Crosstalk
>68dB at 1kHz (2x5W into 8 Ohms)
阻尼係數
>100 (at 8 Ohms)
尺寸與重量
外型尺寸
寬： 215 mm
高： 60 mm
深： 255 mm
產品淨重
2.2 KG
尺寸與重量
外型尺寸
寬： 215 mm
高： 60 mm
深： 255 mm
產品淨重
2.2 KG
